How to Measure
We're committed to empowering you with knowledge you need to get the right product, the first try. In this guide, we break down the measurement process for fridge seals and strip curtains, ensuring a seamless fit that transforms your cooling efficiency.
How to Measure Your Push In Seal

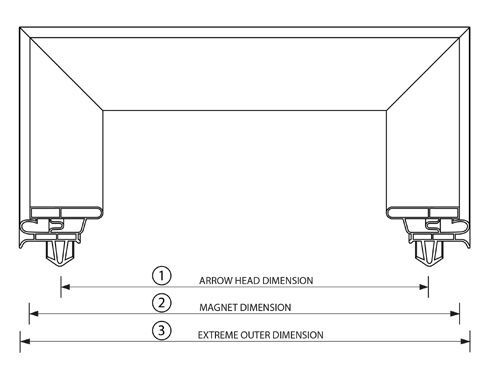

Measurements for 'push in' seal profiles are most commonly taken from the extreme outside edge (3), but we can also use magnet (2) or the arrowhead (1) measurements as long as you let us know. Please refer to the diagram and let us know if you are using anything other than (3).
How to Measure Your
Screw In Seal

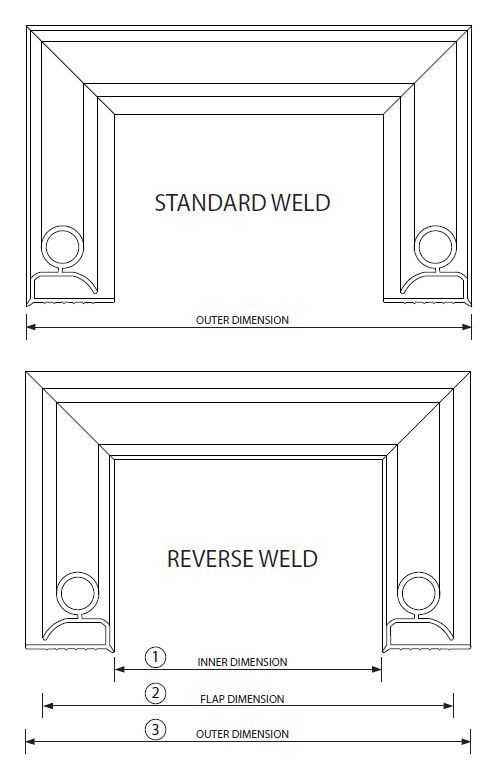

Measurements for 'screw in' seal profiles are taken from the extreme outside edge (3) with the standard weld orientation as 'Lip In'. If you require your seal made reverse (called 'Lip Out' or ‘Reverse’) please let us know when ordering.
How to Measure Strip Curtains
Strip curtains can be mounted either within the door frame or on one side of the opening, the measurements you take will vary depending on the mounting style.
How to Measure Your Strip Curtain

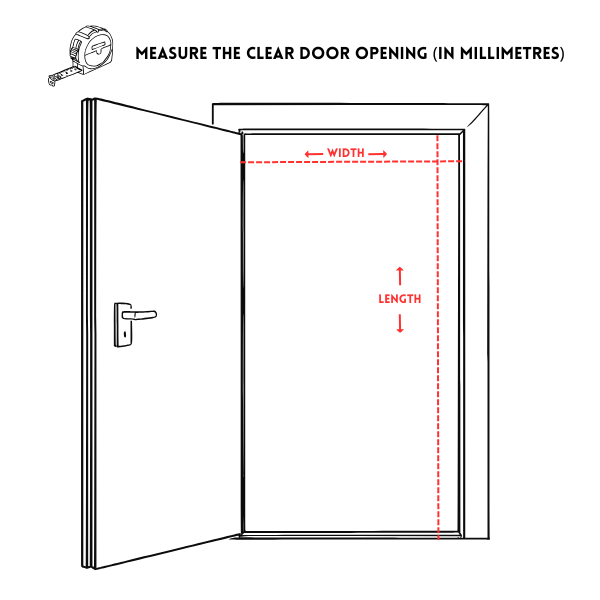

Measurements required for 'Inside Mount' strip curtains are the clear opening dimensions of Length x Width in millimetres. For inside mount curtains no mounting buffer is added. Your curtain will be provided in the exact measurements provided. Please refer to the diagram for illustration.
(To Mount Inside Frame)
How to Measure Your Strip Curtain
(To Mount Outside of Door Frame)

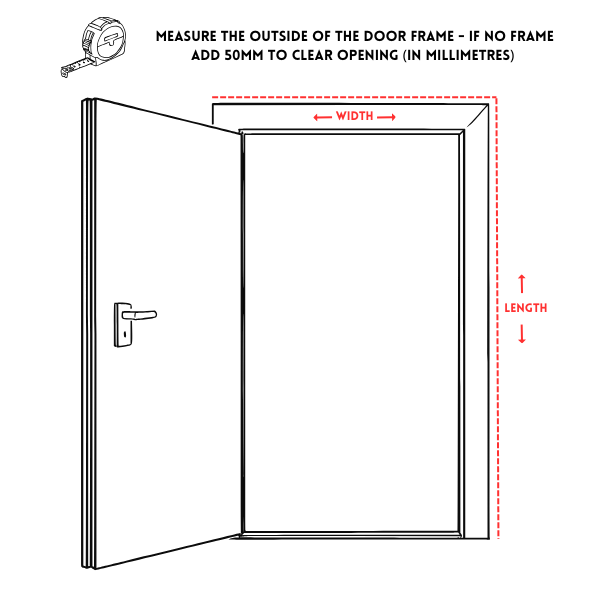

Measurements required for 'Outside Mount' strip curtains are the clear opening dimensions of Length x Width in millimetres. For outside mount curtains a 50mm mounting buffer is added to the measurements provided. Please refer to the diagram for illustration.
Still unsure if you’re doing it right?
